R = [15, 9, 12]A backward dynamic programming algorithm.
Scenario:
An NGO sells a single handcrafted backpack produced by under-represented artisan groups. Each month, over a 120-month horizon, they reach one of four audience-size tiers—40, 60, 80, or 100 customers—and choose a campaign label (marketing message) highlighting a different artisan community. Each label yields a unit profit per customer as follows:
| Label | Artisan Group Highlighted | Profit/Customer (£) |
|---|---|---|
| EcoNomad | Women-led cooperatives | 15 |
| TrailBlazer | Disability-led artisan studios | 9 |
| ClassicCarry | Minority-owned craft collectives | 12 |
Their goal is to maximize total expected profit over the 120 months by selecting the best label each month.
import numpy as np
def create__trans_prob(num_states, num_actions):
"""
Create a transition probability matrix for a reinforcement learning problem.
Parameters:
- num_states: Number of states in the environment.
- num_actions: Number of actions available in the environment.
Returns:
- P: Transition probability matrix of shape (num_states, num_actions, num_states) using Dirichlet.
"""
alpha = np.ones(num_states) # Dirichlet distribution parameter
P = np.zeros((num_states, num_actions, num_states))
for s in range(num_states):
for a in range(num_actions):
P[s, a, :] = np.random.dirichlet(alpha) # transition probabilities for each state-action pair
return P# initialize value function values
import numpy as np
def create__trans_prob(num_states, num_actions):
"""
Create a transition probability matrix for a reinforcement learning problem.
Parameters:
- num_states: Number of states in the environment.
- num_actions: Number of actions available in the environment.
Returns:
- P: Transition probability matrix of shape (num_states, num_actions, num_states) using Dirichlet.
"""
alpha = np.ones(num_states) # Dirichlet distribution parameter
P = np.zeros((num_states, num_actions, num_states))
for s in range(num_states):
for a in range(num_actions):
P[s, a, :] = np.random.dirichlet(alpha) # transition probabilities for each state-action pair
return P
def backward_dynamic_programming(T, states, actions, R, P):
"""
Perform backward dynamic programming to compute the value function and action values.
Parameters:
- T: Number of time steps.
- states: List of states in the environment.
- actions: Actions available in the environment.
- P: Transition probability matrix of shape (num_states, num_actions, num_states).
Returns:
- V: Value function for each state at each time step.
- A: Best action for each state at each time step.
"""
num_states = len(states) # number of states
num_actions = len(actions) # number of actions
V = np.zeros((T+1, num_states)) # initial value function for 80 time steps and 4 states
A = np.zeros((T, num_states)) # action values for 80 time steps and 4 states
for t in reversed(range(T)):
for i in range(num_states): # loop over states
# initialize best value and action
best_val = -np.inf
best_action = None
# loop over actions to find the best action for the current state
for a in range(num_actions): # loop over actions
q_ia = 0 # initialize action value
# calculate the action value q(s, a) using the Bellman equation
for j in range(num_states): # loop over next states
# r = np.random.normal(50, 40) # sample a reward from a normal distribution
r = R[a]*states[i] # reward based on the action and state
q_ia = + r + 0.1*P[i][a][j]*V[t+1, j] # reward + discounted value of next state
if q_ia > best_val: # if the action value is better than the best value found so far
best_val = q_ia # update best value
best_action = a # update best action
V[t][i] = best_val # store the best value for the current state at time t
A[t][i] = best_action # store the best action for the current state at time t
return V, A
T = 120
states = list(range(40, 61)) # example states
actions = [0, 1, 2] # example actions
num_states = len(states) # number of states
num_actions = len(actions) # number of actions
R = [15, 9, 12] # rewards for each action
P = create__trans_prob(num_states, num_actions) # create transition probability matrix
Vs, As = backward_dynamic_programming(T, states, actions, R, P) # perform backward dynamic programmingVs.shape(121, 21)import pandas as pd

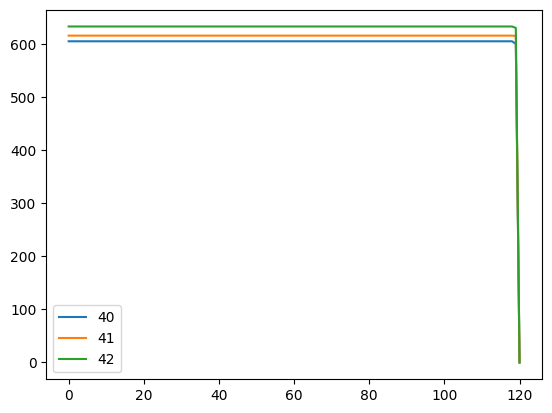

pd.DataFrame(Vs, columns=states, index=range(T+1)).iloc[:, 0:3].plot()
Consider a network of two products: product 1 (bags) has 10 units in inventory, while product 2 (raincoats) has 20 units in inventory. Customers may buy product 1, product 2, or both products. The price is £15 for product 1, £20 for product 2, and £30 if a customer wants to buy both products 1 and 2. The products can be sold over a time horizon of T = 90 periods. The arrival probabilities in each time period are constant over time: λ₁ = 0.2, λ₂ = 0.15, and λ₃ = 0.1. With a probability of λ₀ = 0.55, there will be no arrival in a given period. The objective of the NGO manager is to decide, whenever a shopping request arrives, whether to accept the demand such that the total expected profit is maximized.
import numpy as np
def backward_dp_two_products(T, Imax, Jmax, lambdas, prices):
"""
Backward dynamic programming for 2‐product booking control.
Args:
T : int, horizon (e.g. 90)
Imax : int, max bags inventory (e.g. 10)
Jmax : int, max raincoats inventory (e.g. 20)
lambdas : list of arrival probabilities [λ0, λ1, λ2, ...]
prices : dict, prices for each product
{1: price_bag, 2: price_raincoat, 3: price_both}
Returns:
V : np.array shape (T+1, Imax+1, Jmax+1)
value function
policy : np.array shape (T, Imax+1, Jmax+1, 4)
policy[t,i,j,k] = 0 (reject) or 1 (accept) for arrival k
"""
V = np.zeros((T+1, Imax+1, Jmax+1))
policy = np.zeros((T, Imax+1, Jmax+1, 3), dtype=int)
for t in range(T-1, -1, -1):
for i in range(Imax+1):
for j in range(Jmax+1):
# calculate the value function for each state (i, j) at time t following the Bellman equation
reward = 0
for p in range(2):
if i == 0 | j == 0 # No capacity to accept this booking
reject = V[t+1, i, j]
policy[t, i, j, p] = 0 # Reject
else:
return V, policy
# --- Usage ---
T = 90
Imax, Jmax = 10, 20
lambdas = [0.55, 0.2, 0.15, 0.1]
fares = {1:15, 2:20, 3:30}
V, policy = backward_dp_two_products(T, Imax, Jmax, lambdas, fares)list(range(1, 2))[0, 1]
